Author's Note: This article is a direct response to an audience member's request. Defeating China's Anti-Access (A2) Strategy: The US Perspective Part II will be out by next week. The poll results gave a plurality to China's Anti Access Strategy: Submarine Force with 6/13 votes. I'll start work on it shortly. I might use future polls just to see what you guys think on certain issues for the sake of my own curiosity.

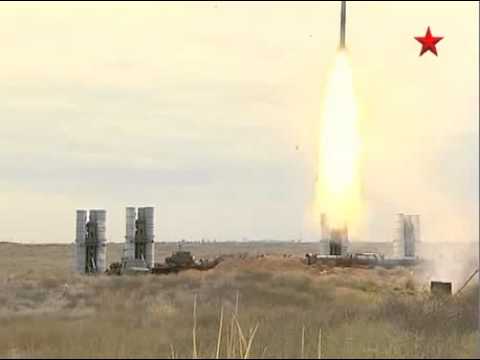

S-400
The S-400 or SA-21 "Growler" is arguably the most formidable surface to air missile system in the world. The S-400 is an evolution of the S-300 system and employs modern X-band active electronically scanned array (AESA) radars and four types of missiles. The 92N2E Grave Stone AESA radar is powerful enough to pose a problem for some low observable aircraft and non-stealthy aircraft don't stand a chance at evading detection without proper electronic and cyber warfare support.
"The 92N6E Grave Stone will automatically prioritize targets, compute Launch Acceptable Regions for missile launches, launch missiles, capture missiles, and provide midcourse guidance commands to missiles while tracking the target and missile. Missile guidance modes include pure command link, semi-active homing, and Track via Missile (TVM) / Seeker Aided Ground Guidance (SAGG), where missile semi-active seeker outputs are downlinked to the Grave Stone to support the computation of missile uplink steering commands. The radar can track 100 targets in Track While Scan mode, and perform precision tracking of six targets concurrently for missile engagements. data exchanges between the 92N6E Grave Stone and 30K6E battle management system are fully automatic." - Kopp, 2012
APA image
The deployment of the S-400 would be problematic for the United States as 4th generation aircraft would be unable to safely operate near China (which is already the case but to a lesser extent with the S-300 PMU2 and HQ-9) but the USAF maintains the capability to overcome the S-400 with stealth aircraft. The LSR-B, B-2, F-22, and F-35 should all be stealthy enough to destroy S-400 sites if equipped with the right munitions. For example, the F-35 is cited to have a frontal radar cross section around .0015m^2 and a rear of .01m^2 (Global Security, 2011). Thus, the F-35 would be able to approach the 92N2E Grave Stone without being detected until 40 nautical miles (after weapons release the F-35 will have to turn around exposing the larger rear rcs hence 40 nm not 20 nm). If the F-35 is equipped with the GBU-39/B small diameter bombs (SDB) which have a stand-off range in excess of 60 nautical miles (Boeing, 2013), the F-35 is more than capable of getting the job done. However, the F-35 would be unable to use JDAMs to destroy S-400 sites as the stand-off range is insufficient. The Raptor is considerably stealthier than the F-35 with a frontal radar cross section of .0001m^2 with a side and rear of between .01-.001m^2 (Air Power Australia, 2011). Thus, the Raptor might be able to employ JDAM's against S-400 sites if it drops the 1,000 pound JDAM's from altitude and at maximum supercruise speed of mach 1.5-1.8 which gives a standoff range of at least 24 nautical miles (Hanlon, 2006). However, using SDB's would likely be preferred as it gives a much greater margin of safety for F-22 pilots.
However, the Taiwanese Air Force (ROCAF) will be severely effected by the deployment of the S-400:
"At present, China’s land-based mobile air defense missile systems, HQ-9 and S-300, can reach only a small sliver of northwestern Taiwan. Though a clear advantage during a war over control of the middle line of the Taiwan Strait, it is not complete air dominance of the island itself. However, with the planned purchase of the 400-kilometer-range Russian S-400 surface-to-air missile (SAM) system, China will for the first time have complete air defense coverage of Taiwan. Ongoing negotiations with the Chinese on S-400 were confirmed by Russian officials last year, said Vasily Kashin, a researcher with Moscow’s Centre for Analysis of Strategies and Technologies." - Defense News, 2013
The S-400 SAM system utilizes four missiles that are employed at different ranges. The longest range missile, the 40N6 missile, has a maximum range of 215 nautical miles (400 km) and it employs both an active and semi-active radar seeker. However, these missiles are typically reserved for intercepting high value AWACS, JSTARS, and electronic jammer assets rather than fighter aircraft (Kopp, 2012). The mainstay of the S-400 system is the Fakel 48N6E3/48N6DM missile which has a range of 130 nautical miles and is illustrated above. The other two missile types employed by the S-400 are shorter range missiles are the 9M96E and 9M96E2 which are designed to hit low and medium altitude aircraft. The 96M6E is equivalent to the PAC-3 with a range of 21.6 nautical miles while the 9M96E2 has a range of 64.8 nautical miles (Kopp, 2012). Due to the backlog in Russian orders, Fakel could deliver S-400 systems to China by 2017 at the earliest (Military and Security Developments Involving the People’s Republic of China, 2013). Its likely China would forward deploy any S-400 batteries it acquires to the 31st Army Group, Xiamen, Fujian province, in the Nanjing military region if its deployment of S-300 PMU2 batteries are any indication (Defense News, 2013). Fujian province contains the closest Chinese territory relative to Taiwan as seen on the DOD image below.
List of Taiwanese air bases relative to distance from Xiamen SAM sites (Current S-300PMU2 sites located near 31st Army group depicted in green on DOD image). Note: not all Taiwanese air base locations listed but all are within 215 nautical miles (400 km) of Xiamen.
Xiamen - Chiayi 140 nautical miles (261 km)
Xiamen - Hsinchu 160 nautical miles (294 km)
Xiamen - Taoyuan 176 nautical miles miless (328 km)
Xiamen - Taipei 192 nautical miles (356 km)
Xiamen - Hualien 193 nautical miles (358 km)
Taiwanese AWACS aircraft will not be safe from 40N6 missiles even if they operate from the farthest available ROCAF airbases. Fighter aircraft such as the F-CK-1 and F-16A/B Block 20 should be relatively safe as it is unlikely People's Liberation Army (PLA) forces would waste their limited number of expensive 40N6 missiles on comparatively lower value targets. A standard S-400 battery is equipped with a total of 32 missiles and it is likely that the bulk of these missiles are the 48N6E3/48N6DM, 9M96E, and 9M96E2. However, it is worth noting that the 92N2E Grave Stone radar is powerful enough to track the positions of ROCAF fighters as they fly over Taiwan and relay the information to other PLA or People's Liberation Army Air Force (PLAAF) assets.
Su-35S
Su-35
The Su-35 is the latest evolution of the venerable Su-27 Flanker series of aircraft. The combination of a reduced radar cross section, supermaneuverability, IRST, off-bore sight weapon capability, and a powerful Irbis-E passively scanned electronic scanned array radar makes the "Flanker-E" (NATO designation) the most formidable non-Western fighter aircraft currently in production. The sale of Su-35 aircraft will most severely impact the Taiwanese Air Force (ROCAF). If the deal goes through, the actual deliveries of Su-35 aircraft to China coincides with the retirement of nearly 70% of the Taiwanese air force (Kan, 2012).
"Though 24 to 48 fighters are not a significant threat to US forces, they pose a problem for Taiwan as it retires 56 Mirage 2000 fighters and roughly 50 F-5s...there has been a significant push by Taiwan to procure 66 F-16C/D fighters to counter reductions. Effective lobbying by China within the US government has blocked new F-16 sales to Taiwan." - Defense News, 2012
Furthermore, from a quality perspective, the Su-35 outclasses both of the most advanced fighter aircraft of the Taiwanese Air Force: the F-CK-1 Ching-kuo and F-16A Block 20. The $5.3 billion dollar upgrade package for Taiwan's existing 145 F-16A aircraft will mitigate recent acquisitions of the PLAAF to some extent but not fully equalize the balance of power. If policy makers in Washington desire to off-set both the quantitative and qualitative decline of the ROCAF relative to the PLAAF, the sale of either new F-16C/D Block 50/52+ or F/A-18E/F Super Hornets is required. Defense Industry Daily notes the current upgrade package which is seen as a compromise has the potential of being the worst possible solution.
"They attempted to thread the needle by offering more advanced technology than the equipment in F-16 Block 52s, which have been sold to countries like China’s ally, Pakistan. The question is whether this is actually a worst-of-all-possible worlds outcome: showing weakness abroad on Taiwan, failing to extend the F-16 production line and American jobs at home, and offering cutting-edge technology that risks falling into the hands of Chinese intelligence."
However, the sale of new aircraft to Taiwan is not necessarily recommended by the author as it has the potential to be highly detrimental to current PRC-USA relations.
Taiwanese F-CK-1 Ching-kuo aircraft
Although most observers agree the immediate strategic impact of a singular new Chinese fighter squadron is limited for the United States, the sale will allow Chinese engineers to inspect some of the most recent advancements in Russian engine technology. Despite the numerous reliability and performance based problems with existing reverse engineered copies of Russian Flanker systems, Chinese aerospace engineers gained invaluable insight into Russian systems from the last sale of Flankers to the PLAAF in the 1990s. The lessons learned from the original Russian Flankers was applied to indigenous fighter development programs like the J-10, J-11B, and J-15 to at least a moderate degree of success.
"In September 2010, for instance, Reuben Johnson reported in Jane’s Defense Weekly that PLAAF Overhaul Plant Number 5719 had developed an upgrade for the AL-31F that extended its service life from 900 to 1,500 flight hours. Russian specialists viewed this achievement as 'another example of how the technology sold to the Chinese during the 1990s has now been fully assimilated by them. It is only a matter of time before the engines that China produces will be as good as or better than anything designed here in Russia.'” - Andrew Erickson and Gabe Collins, 2012
The engine of the Su-35, the AL-41FA1 in particular is sought by China. Many observers note that an engine of the AL-41FA1 caliber is necessary to power the heavy J-20 airframe. Some note that even if the J-20 is equipped with twin 32,000 pound afterburning AL-41FA1 engines, the J-20 will not meet its full potential.
"It’s not obvious from the grainy photos of the J-20 what engines the plane currently uses, but it’s probably safe to assume they’re Russian AL-31Fs — still the best engines China reliably has access to. However, the AL-31F is clearly inadequate for the apparently heavy J-20. Even the up-rated 117S version of the AL-31F 'would likely not be sufficient to extract the full performance potential of this advanced airframe,' Kopp and Goon wrote. To perform at its best, the J-20 will probably need purpose-designed motors. And developing those could take a long, long time." - David Axe, 2011
Given China's current problems with the WS-10 engine (domestic copy of ALF-31), its unlikely they will be able to fully reverse engineer the 117S in the near future. However, obtaining 117S engines would at the very least accelerate the progress of domestic engine development programs.
"China’s current pursuit of an Su-35 purchase agreement with Russia primarily reflects a desire to gain access to the NPO Saturn/Lyulka117S engine, a next-generation follow-on to the Su-27’s AL-31F engine, to try to reduce development time for Chinese engine programs." - Andrew Erickson and Gabe Collins, 2012
If China gains momentum in its domestic jet engine development programs, the implications have the potential to be significant for the USAF. US and allied forces in the region enjoy a significant advantage in terms of both the reliability and performance of their turbofan engines. Even if Chinese engineers produce a final product that inferior to the 117S, domestically produced Chinese engines will close the gap with Western and Russian manufactures by a considerable margin.
J-20 from the rear
Lada Class Attack Submarines
The sale of Lada class submarines would give Chinese submarine manufactures a glimpse at Russian air independent propulsion technology (AIP). The addition of AIP to China's domestic submarine force would be very problematic for US and allied nations in the region.
Why AIP is important:
One of the inherent disadvantages to diesel electric submarines is the engine requires air for the engine to function meaning the submarine has to surface intermittently for air. While at the surface, the submarine is vulnerable to detection. The solution in older diesel submarines was to incorporate large lead batteries that could be charged by the engine; the use of these batteries would permit the submarine to function for a few hours without having to surface for air. Snorkels could also be used to feed the engine air while remaining under water but the submarine still had to remain fairly close to the surface. The next generation of diesel electric submarines incorporate greatly enhanced AIP capability which enables them to remain underwater for much longer periods of time (Whitman, 2001). AIP is most often achieved in modern diesel electric submarines with the addition of fuel cells (e.g. hydrogen-oxygen fuel cells). Depending upon the speed at which the submarine is traveling while AIP is activated, the AIP equipped submarine could remain submerged for more than a week as opposed to hours. As an added benefit, the use of fuel cells greatly reduces the noise generated by boat as the engine is not used for propulsion while AIP is activated.
The addition of Lada class submarine is the most recent example of China's Navy modernization program.
"In the 1990s, the PLA(N) began to acquire a variety of advanced aircraft, submarines and surface ships, as well as associated modern weapons, sensors and combat systems. Using a combination of imported technology, reverse engineering, and indigenous development, the PRC rapidly narrowed the technology and capability gaps between the PLA(N) and modern navies...Currently, the submarine force consists of six nuclear attack submarines, three nuclear ballistic missile submarines, and 53 diesel attack submarines. Over the next 10 to 15 years, primarily due to the introduction of new diesel-electric and air independent power (AlP) submarines, the force is expected to increase incrementally in size to approximately 75 submarines." - Office of Naval Intelligence, 2009
While China has been aggressively expanding the capabilities of its submarine force, the Taiwanese Navy has technologically stagnated in comparison. Taiwan's most modern submarine, the Hai Lung-class, are based off of the US Barbel-class submarine which was originally designed in the 1950s (the last diesel electric submarines produced by the United States). The other two submarines operated by the Taiwanese Navy are one Trench class submarine (upgraded to Guppy II standard) and an upgraded Balao-class submarine produced during World War II. Taiwan's need for capable diesel electric attack submarines is arguably more pressing than its need for new F-16C/D Block 50/52+ aircraft due to the deployment of PAC-2, PAC-3, Skybow II, and Skybow III missiles batteries.
"Shuai Hua-ming, a key legislator in the LY’s Foreign Affairs and National Defense Committee, visited Washington on February 10-11, and reaffirmed Taiwan’s need for subs. In an address to the United States on May 12, 2011, President Ma reiterated Taiwan’s need to buy F- 16C/D fighters and submarines, primarily for leverage in political negotiations with Beijing. Some, such as former Pentagon official Mark Stokes, have cited submarines for Taiwan’s survival, credible deterrence and asymmetrical advantages. In January 2013, President Ma said that Taiwan’s aging submarines need replacements, when he met with a congressional delegation led by Representatives Ed Royce and Eliot Engel, the Chairman and Ranking Member of the House Foreign Affairs Committee who saw one of Taiwan’s two 1940s-era ex-U.S. Guppy II class subs at a naval base a day earlier." - Shirley A. Kan - Congressional Research Service, 2013
Why AIP is important:
One of the inherent disadvantages to diesel electric submarines is the engine requires air for the engine to function meaning the submarine has to surface intermittently for air. While at the surface, the submarine is vulnerable to detection. The solution in older diesel submarines was to incorporate large lead batteries that could be charged by the engine; the use of these batteries would permit the submarine to function for a few hours without having to surface for air. Snorkels could also be used to feed the engine air while remaining under water but the submarine still had to remain fairly close to the surface. The next generation of diesel electric submarines incorporate greatly enhanced AIP capability which enables them to remain underwater for much longer periods of time (Whitman, 2001). AIP is most often achieved in modern diesel electric submarines with the addition of fuel cells (e.g. hydrogen-oxygen fuel cells). Depending upon the speed at which the submarine is traveling while AIP is activated, the AIP equipped submarine could remain submerged for more than a week as opposed to hours. As an added benefit, the use of fuel cells greatly reduces the noise generated by boat as the engine is not used for propulsion while AIP is activated.
The addition of Lada class submarine is the most recent example of China's Navy modernization program.
"In the 1990s, the PLA(N) began to acquire a variety of advanced aircraft, submarines and surface ships, as well as associated modern weapons, sensors and combat systems. Using a combination of imported technology, reverse engineering, and indigenous development, the PRC rapidly narrowed the technology and capability gaps between the PLA(N) and modern navies...Currently, the submarine force consists of six nuclear attack submarines, three nuclear ballistic missile submarines, and 53 diesel attack submarines. Over the next 10 to 15 years, primarily due to the introduction of new diesel-electric and air independent power (AlP) submarines, the force is expected to increase incrementally in size to approximately 75 submarines." - Office of Naval Intelligence, 2009
While China has been aggressively expanding the capabilities of its submarine force, the Taiwanese Navy has technologically stagnated in comparison. Taiwan's most modern submarine, the Hai Lung-class, are based off of the US Barbel-class submarine which was originally designed in the 1950s (the last diesel electric submarines produced by the United States). The other two submarines operated by the Taiwanese Navy are one Trench class submarine (upgraded to Guppy II standard) and an upgraded Balao-class submarine produced during World War II. Taiwan's need for capable diesel electric attack submarines is arguably more pressing than its need for new F-16C/D Block 50/52+ aircraft due to the deployment of PAC-2, PAC-3, Skybow II, and Skybow III missiles batteries.
"Shuai Hua-ming, a key legislator in the LY’s Foreign Affairs and National Defense Committee, visited Washington on February 10-11, and reaffirmed Taiwan’s need for subs. In an address to the United States on May 12, 2011, President Ma reiterated Taiwan’s need to buy F- 16C/D fighters and submarines, primarily for leverage in political negotiations with Beijing. Some, such as former Pentagon official Mark Stokes, have cited submarines for Taiwan’s survival, credible deterrence and asymmetrical advantages. In January 2013, President Ma said that Taiwan’s aging submarines need replacements, when he met with a congressional delegation led by Representatives Ed Royce and Eliot Engel, the Chairman and Ranking Member of the House Foreign Affairs Committee who saw one of Taiwan’s two 1940s-era ex-U.S. Guppy II class subs at a naval base a day earlier." - Shirley A. Kan - Congressional Research Service, 2013
A capable submarine force would tremendously bolster Taiwan's chances of delaying or crippling a PRC maritime invasion force.
"Submarines are capable of either destroying efforts to cross the strait, or strangling Chinese trade as it moves through Southeast Asia’s key choke points. Modern missiles give them vastly longer offensive reach, and modern submarines are very difficult to find and target once they put to sea. For a nation like Taiwan, they’re the ultimate conventional deterrent against invasion." - Defense Industry Daily, 2013
"Submarines are capable of either destroying efforts to cross the strait, or strangling Chinese trade as it moves through Southeast Asia’s key choke points. Modern missiles give them vastly longer offensive reach, and modern submarines are very difficult to find and target once they put to sea. For a nation like Taiwan, they’re the ultimate conventional deterrent against invasion." - Defense Industry Daily, 2013
Taiwan is the most negatively affected by the Chinese purchase of new Russian arms. However, purchase of this magnitude might be able to convenience the United States Congress to approve of further weapon sales. However, the sale of new submarines to Taiwan would be difficult as the United States no longer manufactures diesel electric submarines and no country aside from the United States has dared to sell weapons to Taiwan within the last decade.
Sources
- China Purchasing Russian Jets and Subs? Harry Kazianis - The Diplomat, 2013. http://thediplomat.com/china-power/china-purchasing-russian-jets-and-subs/
- China to buy Lada-class subs, Su-35 fighters from Russia, Choi Chi-yuk, 2013. http://www.scmp.com/news/china/article/1199448/china-buy-russian-fighters-submarines
- China's New Jet, Radar Complicate US Posture, WENDELL MINNICK - Defense News, 2013. http://www.defensenews.com/apps/pbcs.dll/article?AID=2013307060004
- China Tries To Expand Control as Taiwan Resists: Report, WENDELL MINNICK - Defense News, 2012. http://www.defensenews.com/apps/pbcs.dll/article?AID=2012308280011
- CRS Report Reviews Taiwan Security, U.S. Relations, WENDELL MINNICK - Defense News, 2012. http://www.defensenews.com/apps/pbcs.dll/article?AID=2012305240003
- Taiwan: Major U.S. Arms Sales Since 1990, Shirly A. Khan - Congressional Reserach Service, 2012. http://www.fas.org/sgp/crs/row/RL30957.pdf
- Taiwan: Major U.S. Arms Sales Since 1990, Shirly A. Khan - Congressional Reserach Service, 2013. http://www.fas.org/sgp/crs/weapons/RL30957.pdf
- Import or Die: Taiwan’s (Un?)Stalled Force Modernization, Defense Industry Daily, 2013. http://www.defenseindustrydaily.com/taiwans-unstalled-force-modernization-04250/
- Raytheon Looks At Options For Long-Range AIM-9, Bill Sweetman - Aviation Week, 2013. http://www.aviationweek.com/Article.aspx?id=/article-xml/awx_06_19_2013_p0-589808.xml
- AIM-9X Block III to Become a BVR Missile, Defense Update, 2013. http://defense-update.com/20130722_aim-9x-block-iii-to-become-a-bvr-missile.html
- U.S. Navy Follows U.K. Lead On Infrared Systems, Bill Sweetman - Aviation Week, 2013. http://www.aviationweek.com/Article.aspx?id=/article-xml/AW_07_08_2013_p26-593339.xml&p=1
- 6 Weapons That Love the New Pentagon Budget, Spencer Ackerman, 2013. http://www.wired.com/dangerroom/2013/04/six-weapons-budget/?pid=1833&viewall=true
- Taiwan Gives Up On Partial F-16C/D Release, WENDELL MINNICK - Defense News, 2013. http://www.defensenews.com/apps/pbcs.dll/article?AID=2013303200022
- Lockheed Awarded Taiwan F-16 Upgrade, WENDELL MINNICK - Defense News, 2013. http://www.defensenews.com/apps/pbcs.dll/article?AID=2012310030001
- Still-Vigorous Asian Budgets Focus on Naval, Air Forces. WENDELL MINNICK - Defense News, 2013. http://www.defensenews.com/apps/pbcs.dll/article?AID=2012310240003
- Time Running Out for Taiwan if Russia Releases S-400 SAM, WENDELL MINNICK - Defense News, 2013. http://www.defensenews.com/apps/pbcs.dll/article?AID=2013305270012
- F-16 Fighting Falcon, General Dynamics. http://www.fighter-planes.com/info/f16.htm
- Russia’s SU-35 Super-Flanker: Mystery Fighter No More, Defense Industry Daily, 2013. http://www.defenseindustrydaily.com/Russias-SU-35-Mystery-Fighter-No-More-04969/
- The “Long Pole in the Tent”: China’s Military Jet Engines, Andrew Erickson and Gabe Collins, 2012. http://thediplomat.com/2012/12/09/the-long-pole-in-the-tent-chinas-military-jet-engines/?all=true
- Teaching an Old Dog New Tricks: Taiwan’s F-16 Upgrade, James Hardy, 2012. http://thediplomat.com/2012/11/26/taiwans-f-16-upgrade-creeps-forward-slowly/?all=true
- China’s Jet Fighter Surprise, David Axe, 2013. https://medium.com/war-is-boring/e7dd4741d89f
- Chengdu J-XX [J-20] Stealth Fighter Prototype A Preliminary Assessment, Carlo Kopp & Peter Goon, 2011. http://www.ausairpower.net/APA-J-XX-Prototype.html
- F-35 Design, Global Security, 2011. www.globalsecurity.org/military/systems/aircraft/f-35-design.htm
- http://www.forbes.com/sites/kenrapoza/2013/03/25/after-a-decade-long-wait-china-and-russia-ink-super-jet-military-deal/
- Nanjing Military Region, Global Security, 2013. http://www.globalsecurity.org/military/world/china/nanjing-mr.htm
- F-22 scores direct hit in supersonic, high-altitude JDAM drop, Mike Hanlon, 2006.
- http://www.gizmag.com/go/5721/
- Russia’s PAK-FA versus the F-22 and F-35, Peter Goon & Carlo Kopp, 2009. http://www.ausairpower.net/APA-NOTAM-300309-1.html
- Almaz-Antey 40R6 / S-400 Triumf Self Propelled Air Defence System / SA-21, Carlo Kopp, 2012. http://www.ausairpower.net/APA-S-400-Triumf.html
- Small Diameter Bomb, Boeing, 2013. http://www.boeing.com/boeing/defense-space/missiles/sdb/
- AIR-INDEPENDENT PROPULSION, Edward C. Whitman, 2001. http://www.navy.mil/navydata/cno/n87/usw/issue_13/propulsion.htm
